IVARetired🇺🇸
Gemini G3C
Designation: G3C
The Gemini IVA baseline suit — worn by John Young and Gus Grissom on Gemini 3, the first American crewed Gemini mission.
About This Suit

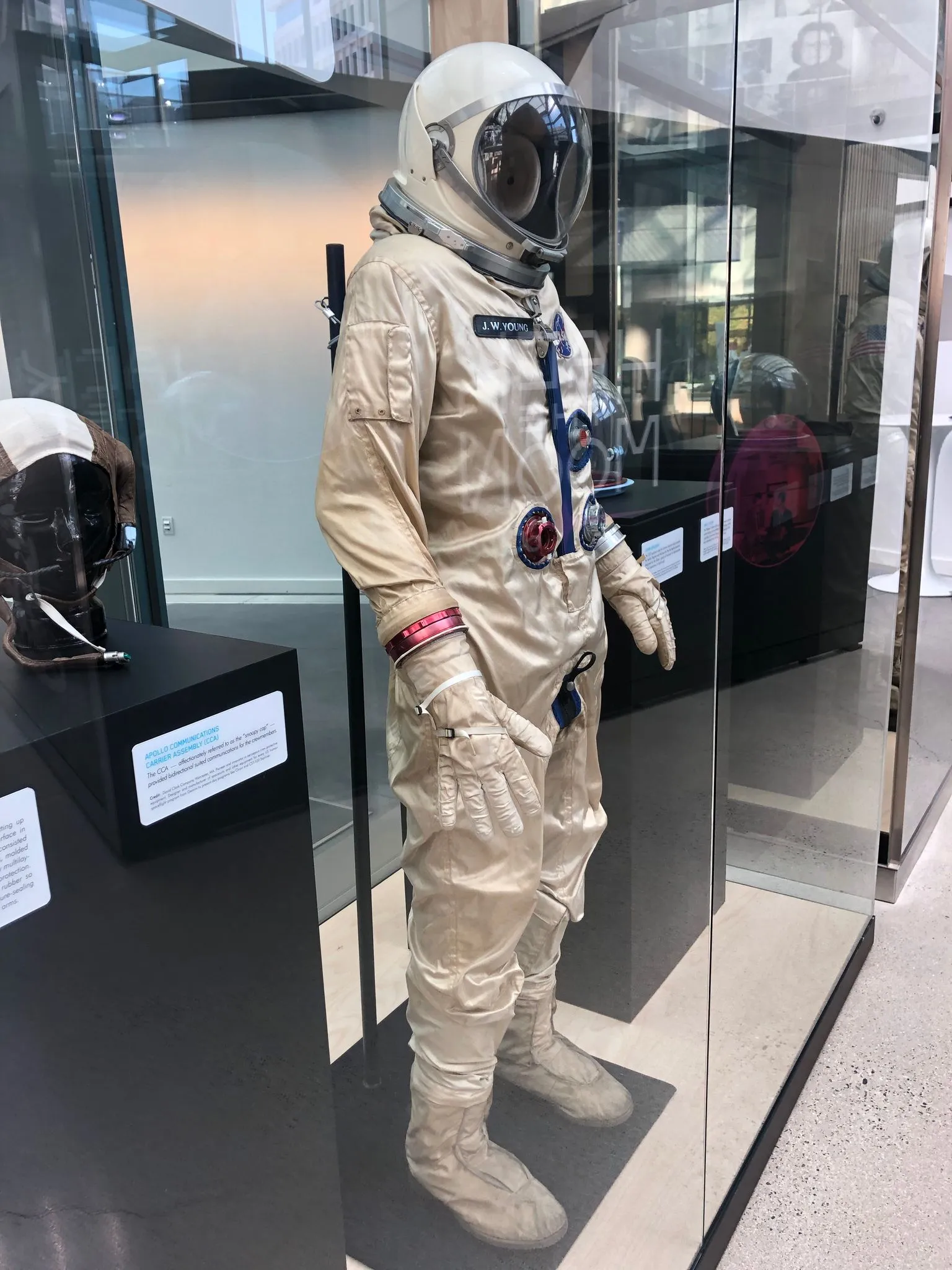

The Gemini G3C was the intravehicular activity (IVA) variant of the Gemini pressure suit series, used on early Gemini missions where no spacewalk was planned. Built by David Clark Company from a lineage descending from high-altitude pilot suits, it was a five-layer construction: neoprene pressure bladder, nylon restraint layer, neoprene-coated nylon cover, aluminium-coated mylar thermal layer, and an aluminized nylon outer. It lacked the additional Mylar insulation layers of the EVA-capable G4C variant. John Young wore the G3C on Gemini 3 — the first crewed Gemini flight — on March 23, 1965, along with Gus Grissom. The suit connected to the capsule via umbilical for all life support and inflated only in an emergency depressurization. On Gemini 7, a lighter, softer G5C variant was created to allow Jim Lovell and Frank Borman to remove their helmets and stow the suits for their record-breaking 14-day mission.
Key Features
- 1IVA-only baseline Gemini suit — no EVA capability
- 25-layer construction derived from David Clark high-altitude pilot suit heritage
- 3Connected to Gemini spacecraft for all life support — not self-contained
- 4Full pressure at 3.7 psi pure O₂ for emergency depressurization
- 5Gold-coated polycarbonate outer visor for solar glare protection
- 6Predecessor to the EVA-capable G4C variant
Historic Missions
1965
Gemini 3
First crewed Gemini mission; Gus Grissom and John Young orbited Earth 3 times
👨🚀 Gus Grissom, John Young
1965
Gemini 4
Jim McDivitt (IVA G3C); Ed White (EVA G4C) — first U.S. spacewalk
👨🚀 Jim McDivitt (G3C), Ed White (G4C)
1965
Gemini 5
Gordon Cooper and Pete Conrad — 8-day endurance mission
👨🚀 Gordon Cooper, Pete Conrad
Engineering & Research Highlights
- ◆Established that a purpose-designed spacesuit (not adapted from military hardware) could be built on schedule for a crewed program
- ◆David Clark Company's 5-layer construction became the basis for all subsequent U.S. suit architectures
